386AS/382A TIMKEN圆锥滚子轴承

品牌： TIMKEN
型号： 386AS/382A TIMKEN圆锥滚子轴承
类型：圆锥滚子轴承
类型说明：

386AS/382A TIMKEN圆锥滚子轴承产品参数

参数	数据	说明
Series	385
Cone Part Number	386AS
Cup Part Number	382A
Design Units	Imperial
Bearing Weight	1.7000 lb
Bearing Weight	0.8000 Kg
Cage Type	Stamped Steel
D - Cup Outer Diameter	3.8125 in
D - Cup Outer Diameter	96.838 mm
d - Cone Bore	1.7500 in
d - Cone Bore	44.450 mm
B - Cone Width	0.8640 in
B - Cone Width	21.946 mm
C - Cup Width	0.6250 in
C - Cup Width	15.875 mm
T - Bearing Width	0.8268 in
T - Bearing Width	21.001 mm
Z - Number of Rollers Per Row	19
R - Cone Backface "To Clear" Radius	0.140 in	These maximum fillet radii will be cleared by the bearing corners.
R - Cone Backface "To Clear" Radius	3.560 mm	These maximum fillet radii will be cleared by the bearing corners.
r - Cup Backface "To Clear" Radius	0.030 in	These maximum fillet radii will be cleared by the bearing corners.
r - Cup Backface "To Clear" Radius	0.76 mm	These maximum fillet radii will be cleared by the bearing corners.
da - Cone Frontface Backing Diameter	2.09 in
da - Cone Frontface Backing Diameter	53.09 mm
db - Cone Backface Backing Diameter	2.32 in
db - Cone Backface Backing Diameter	58.93 mm
Da - Cup Frontface Backing Diameter	3.66 in
Da - Cup Frontface Backing Diameter	92.96 mm
Db - Cup Backface Backing Diameter	3.50 in
Db - Cup Backface Backing Diameter	88.90 mm
Ab - Cage-Cone Frontface Clearance	0.08 in
Ab - Cage-Cone Frontface Clearance	2.03 mm
Aa - Cage-Cone Backface Clearance	0.04 in
Aa - Cage-Cone Backface Clearance	1.02 mm
a - Effective Center Location	-0.12 in	Negative value indicates effective center inside cone backface.
a - Effective Center Location	-3.00 mm	Negative value indicates effective center inside cone backface.
C90 - Dynamic Radial Rating (90 million revolutions)	5740 lbf	Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
C90 - Dynamic Radial Rating (90 million revolutions)	25500 N	Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
C1 - Dynamic Radial Rating (1 million revolutions)	22200 lbf	Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
C1 - Dynamic Radial Rating (1 million revolutions)	98600 N	Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
C0 - Static Radial Rating	24100 lbf
C0 - Static Radial Rating	107000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)	3480 lbf	Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
Ca90 - Dynamic Thrust Rating (90 million revolutions)	15500 N	Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
K - Factor	1.65	These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
e - ISO Factor	0.35	These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
Y - ISO Factor	1.69	These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
G1 - Heat Generation Factor (Roller-Raceway)	42
G2 - Heat Generation Factor (Rib-Roller End)	15.7
Cg - Geometry Factor	0.0859

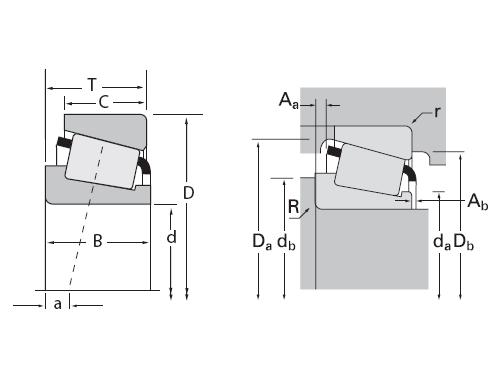

386AS/382A TIMKEN圆锥滚子轴承图纸

386AS/382A TIMKEN圆锥滚子轴承说明

专业销售TIMKEN圆锥滚子轴承386AS - 382A，并且为客户提供属于TIMKEN圆锥滚子轴承。本公司专业提供TIMKEN圆锥滚子轴承全系列产品。并且提供对此类产品的熔断、接通、测温传感器、车头、径向(轴向)基本额定动负荷、等具体参数。构成元素：单列系列英制 382A 386AS 。类似型号：SNW-3026 x 4 1/2、 UCT208-25、紧定套 HA3126 558 - 552-B、QAAPL20A100S、推卸套 AH3076G、轴承附件 SNW-40 x 7 1/4、 TIMKEN QAACW13A060S TIMKEN SNT 518-615 - 21315K - TSNG615 TIMKEN HE2334

产品应用：办公设备、冶金、钢铁、轮滑、医疗保健。应用设备：真空泵、阀门、锻压、铸造机械、拉力试验机、压光机、冷柜、压缩、分离设备、塑料挤出机、弯管机、葡萄酒设备。
