24176EMBW33W40EW45 TIMKEN调心滚子轴承
- 品牌： TIMKEN
- 型号： 24176EMBW33W40EW45 TIMKEN调心滚子轴承
- 类型： 调心滚子轴承
- 类型说明：
-
24176EMBW33W40EW45 TIMKEN调心滚子轴承产品参数
| 参数 | 数据 | 说明 |
|---|---|---|
| Design Unit | Metric | |
| Bearing Weight | 292.0000 Kg | |
| Bearing Weight | 643.7000 lb | |
| Cage Type | EMB | |
| Cage Material | BRASS | |
| Superseded Part | 24176YMBW33W40EW45 | |
| D - Outer Diameter | 620.000 mm | |
| D - Outer Diameter | 24.4094 in | |
| d - Bore | 380.000 mm | |
| d - Bore | 14.9606 in | |
| B' - Inner Ring Width | 243.000 mm | |
| B' - Inner Ring Width | 9.5669 in | |
| B - Outer Ring Width | 243.000 mm | |
| B - Outer Ring Width | 9.5669 in | |
| Z - Number of Rollers Per Row | 23 | |
| R - Inner Ring "To Clear" Radius | 4.00 mm | Maximum housing fillet radius that bearing corners will clear. |
| R - Inner Ring "To Clear" Radius | 0.16 in | Maximum housing fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 4.00 mm | Maximum shaft fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 0.16 in | Maximum shaft fillet radius that bearing corners will clear. |
| da - Inner Ring Backing Diameter | 426.7 mm | |
| da - Inner Ring Backing Diameter | 16.80 in | |
| Da - Outer Ring Backing Diameter | 565.30 mm | |
| Da - Outer Ring Backing Diameter | 22.26 in | |
| D1 - Outer Ring Breakout Diameter | 530.600 mm | |
| D1 - Outer Ring Breakout Diameter | 20.8900 in | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 5580000 N | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 1256000 lbf | |
| C0 - Static Radial Rating | 10100000 N | |
| C0 - Static Radial Rating | 2273000 lbf | |
| e - ISO Factor | 0.36 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y0 - ISO Factor | 1.87 | These factors apply for both inch and metric calculations. See engineering |
| Y1 - ISO Factor | 2.79 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y2 - ISO Factor | 1.83 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Reference Thermal Speed Rating (Grease) | 300 | |
| Reference Thermal Speed Rating (Oil) | 320 | See thermal speed ratings in the engineering section. |
| Cg - Geometry Factor | 0.1074 | Geometry constant for Lubrication Life Adjustment Factor a3l. |

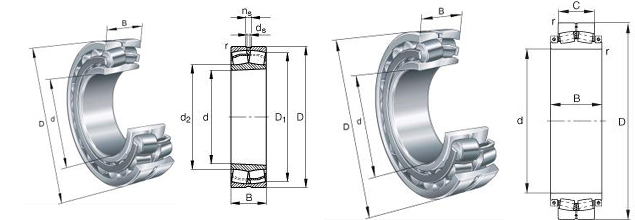

24176EMBW33W40EW45 TIMKEN调心滚子轴承图纸
24176EMBW33W40EW45 TIMKEN调心滚子轴承说明
专业销售TIMKEN调心滚子轴承24176EMBW33W40EW45，并且为客户提供属于TIMKEN调心滚子轴承。本公司专业提供TIMKEN调心滚子轴承全系列产品。并且提供对此类产品的惯性、外圈背面(前面)倒角、内圈、保持架和球（滚子）组件、变频、锻、等具体参数。构成元素：Spherical R 。类似型号：SNW-3026 x 4 1/2、 UCT208-25、 紧定套 HA3126 558 - 552-B、QAAPL20A100S、 推卸套 AH3076G、 轴承附件 SNW-40 x 7 1/4、 TIMKEN QAACW13A060S TIMKEN SNT 518-615 - 21315K - TSNG615 TIMKEN HE2334
产品应用：航空航天 、摩托车、航空航天、卡车、挂车和公共汽车 、冶金。应用设备：葡萄酒设备、离子风机、粮食加工设备、机加工、工业电炉、节能、环保设备、分析仪器、临床检验分析仪器、纺纱设备(纺机)、焊接、切割设备材料。
产品应用：航空航天 、摩托车、航空航天、卡车、挂车和公共汽车 、冶金。应用设备：葡萄酒设备、离子风机、粮食加工设备、机加工、工业电炉、节能、环保设备、分析仪器、临床检验分析仪器、纺纱设备(纺机)、焊接、切割设备材料。
