22328KEMW33W800C4 美国TIMKEN调心滚子轴承
- 品牌： TIMKEN
- 型号： 22328KEMW33W800C4 美国TIMKEN调心滚子轴承
- 类型： 调心滚子轴承
- 类型说明：
-
22328KEMW33W800C4 美国TIMKEN调心滚子轴承产品参数
| 参数 | 数据 | 说明 |
|---|---|---|
| Design Unit | Metric | |
| Bore Taper | 1/12 | |
| Bearing Weight | 34.2300 Kg | |
| Bearing Weight | 75.4641 lb | |
| Cage Type | EM | |
| Cage Material | BRASS | |
| D - Outer Diameter | 299.989 mm | |
| D - Outer Diameter | 11.8106 in | |
| d - Bore | 140.000 mm | |
| d - Bore | 5.5118 in | |
| B' - Inner Ring Width | 102.000 mm | |
| B' - Inner Ring Width | 4.0157 in | |
| B - Outer Ring Width | 102.000 mm | |
| B - Outer Ring Width | 4.0157 in | |
| Z - Number of Rollers Per Row | 15 | |
| R - Inner Ring "To Clear" Radius | 3.00 mm | Maximum housing fillet radius that bearing corners will clear. |
| R - Inner Ring "To Clear" Radius | 0.12 in | Maximum housing fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 3.00 mm | Maximum shaft fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 0.12 in | Maximum shaft fillet radius that bearing corners will clear. |
| da - Inner Ring Backing Diameter | 181.4 mm | |
| da - Inner Ring Backing Diameter | 7.14 in | |
| Da - Outer Ring Backing Diameter | 269.8 mm | |
| Da - Outer Ring Backing Diameter | 10.62 in | |
| D1 - Outer Ring Breakout Diameter | 257.296 mm | |
| D1 - Outer Ring Breakout Diameter | 10.1298 in | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 1520000 N | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 342000 lbf | |
| C0 - Static Radial Rating | 1780000 N | |
| C0 - Static Radial Rating | 401000 lbf | |
| e - ISO Factor | 0.33 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y0 - ISO Factor | 2.01 | These factors apply for both inch and metric calculations. See engineering |
| Y1 - ISO Factor | 2.06 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y2 - ISO Factor | 3.06 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Reference Thermal Speed Rating (Grease) | 1500 | |
| Reference Thermal Speed Rating (Oil) | 1700 | See thermal speed ratings in the engineering section. |
| Cg - Geometry Factor | 0.0880 | Geometry constant for Lubrication Life Adjustment Factor a3l. |

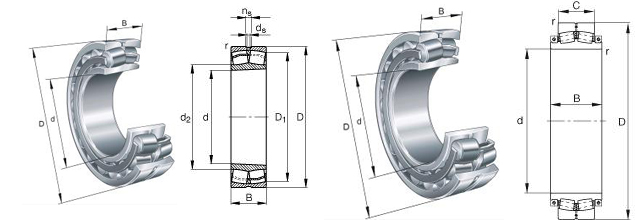

22328KEMW33W800C4 美国TIMKEN调心滚子轴承图纸
22328KEMW33W800C4 美国TIMKEN调心滚子轴承说明
专业销售TIMKEN调心滚子轴承22328KEMW33W800C4，并且为客户提供属于TIMKEN调心滚子轴承。本公司专业提供TIMKEN调心滚子轴承全系列产品。并且提供对此类产品的参考标准件、球)批平均直径、凸）球面滚子轴承、径向(轴向)当量动负荷、中值额定寿命、等具体参数。构成元素：Spherical Ro 。类似型号：SNW-3026 x 4 1/2、 UCT208-25、 紧定套 HA3126 558 - 552-B、QAAPL20A100S、 推卸套 AH3076G、 轴承附件 SNW-40 x 7 1/4、 TIMKEN SNT 518-615 - 21315K - TSNG615 TIMKEN HE2334 TIMKEN QAACW13A060S
产品应用：电机 、农业、汽车、家用电器 、冶金。应用设备：真空干燥机、点胶设备、凿岩机械、皮革加工设备、麻花机、定型机、冷水机、分析仪、混合设备、传感器。
