43131/43312 TIMKEN 圆锥滚子轴承

品牌： TIMKEN
型号： 43131/43312 TIMKEN 圆锥滚子轴承
类型：圆锥滚子轴承
类型说明：

43131/43312 TIMKEN 圆锥滚子轴承产品参数

参数	数据	说明
Series	43000
Cone Part Number	43131
Cup Part Number	43312
Design Units	Imperial
Bearing Weight	1.200 lb
Bearing Weight	0.600 Kg
Cage Type	Stamped Steel
D - Cup Outer Diameter	3.1250 in
D - Cup Outer Diameter	79.375 mm
d - Cone Bore	1.3125 in
d - Cone Bore	33.338 mm
B - Cone Width	0.9478 in
B - Cone Width	24.074 mm
C - Cup Width	0.6875 in
C - Cup Width	17.463 mm
T - Bearing Width	1.0000 in
T - Bearing Width	25.400 mm
Z - Number of Rollers Per Row	13
R - Cone Backface "To Clear" Radius	0.140 in	These maximum fillet radii will be cleared by the bearing corners.
R - Cone Backface "To Clear" Radius	3.560 mm	These maximum fillet radii will be cleared by the bearing corners.
r - Cup Backface "To Clear" Radius	0.060 in	These maximum fillet radii will be cleared by the bearing corners.
r - Cup Backface "To Clear" Radius	1.52 mm	These maximum fillet radii will be cleared by the bearing corners.
da - Cone Frontface Backing Diameter	1.65 in
da - Cone Frontface Backing Diameter	41.91 mm
db - Cone Backface Backing Diameter	2.01 in
db - Cone Backface Backing Diameter	51.05 mm
Da - Cup Frontface Backing Diameter	2.94 in
Da - Cup Frontface Backing Diameter	74.68 mm
Db - Cup Backface Backing Diameter	2.64 in
Db - Cup Backface Backing Diameter	67.06 mm
Ab - Cage-Cone Frontface Clearance	0.09 in
Ab - Cage-Cone Frontface Clearance	2.29 mm
Aa - Cage-Cone Backface Clearance	0.13 in
Aa - Cage-Cone Backface Clearance	3.30 mm
a - Effective Center Location	-0.08 in	Negative value indicates effective center inside cone backface.
a - Effective Center Location	-2.00 mm	Negative value indicates effective center inside cone backface.
C90 - Dynamic Radial Rating (90 million revolutions)	5360 lbf	Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
C90 - Dynamic Radial Rating (90 million revolutions)	23900 N	Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
C1 - Dynamic Radial Rating (1 million revolutions)	20700 lbf	Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
C1 - Dynamic Radial Rating (1 million revolutions)	92000 N	Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
C0 - Static Radial Rating	17100 lbf
C0 - Static Radial Rating	76200 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)	6130 lbf	Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
Ca90 - Dynamic Thrust Rating (90 million revolutions)	27300 N	Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
K - Factor	0.87	These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
e - ISO Factor	0.67	These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
Y - ISO Factor	0.9	These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
G1 - Heat Generation Factor (Roller-Raceway)	16.8
G2 - Heat Generation Factor (Rib-Roller End)	7.57
Cg - Geometry Factor	0.0774

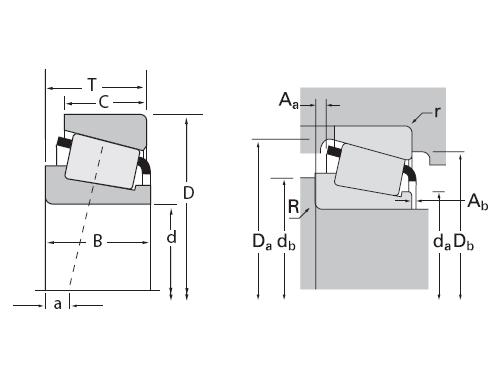

43131/43312 TIMKEN 圆锥滚子轴承图纸

43131/43312 TIMKEN 圆锥滚子轴承说明

专业销售TIMKEN圆锥滚子轴承43131 - 43312，并且为客户提供属于TIMKEN圆锥滚子轴承。本公司专业提供TIMKEN圆锥滚子轴承全系列产品。并且提供对此类产品的双排单向推力球轴承、力矩载荷、轴承支撑面、冷却、座圈背面倒角、等具体参数。构成元素：单列系列英制 43312 43131 。类似型号：SNW-3026 x 4 1/2、 UCT208-25、紧定套 HA3126 QAAPL20A100S、 558 - 552-B、轴承附件 SNW-40 x 7 1/4、推卸套 AH3076G、 TIMKEN QAACW13A060S TIMKEN HE2334 TIMKEN SNT 518-615 - 21315K - TSNG615

产品应用：工业泵、物料运输、海洋能源、工业传动、家用电器。应用设备：冷柜、配电箱、钣金加工、手术专用设备、配电柜、油泵、轴承、贴片机、其他液压机械及部件、压花机。
