上海TIMKEN轴承-22319EMW800C4
- 品牌： TIMKEN
- 型号： 上海TIMKEN轴承-22319EMW800C4
- 类型： 调心滚子轴承
- 类型说明：
-
上海TIMKEN轴承-22319EMW800C4产品参数
| 参数 | 数据 | 说明 |
|---|---|---|
| Design Unit | Metric | |
| Bearing Weight | 10.2000 Kg | |
| Bearing Weight | 22.5000 lb | |
| Cage Type | EM | |
| UPC Code | 087796026971 | |
| Cage Material | BRASS | |
| Superseded Part | 22319YMW800C4 | |
| D - Outer Diameter | 200.000 mm | |
| D - Outer Diameter | 7.8740 in | |
| d - Bore | 95.000 mm | |
| d - Bore | 3.7402 in | |
| B' - Inner Ring Width | 67.000 mm | |
| B' - Inner Ring Width | 2.6378 in | |
| B - Outer Ring Width | 67.000 mm | |
| B - Outer Ring Width | 2.6378 in | |
| Z - Number of Rollers Per Row | 15 | |
| R - Inner Ring "To Clear" Radius | 2.50 mm | Maximum housing fillet radius that bearing corners will clear. |
| R - Inner Ring "To Clear" Radius | 0.1 in | Maximum housing fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 2.50 mm | Maximum shaft fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 0.10 in | Maximum shaft fillet radius that bearing corners will clear. |
| da - Inner Ring Backing Diameter | 119.0 mm | |
| da - Inner Ring Backing Diameter | 4.69 in | |
| Da - Outer Ring Backing Diameter | 175.00 mm | |
| Da - Outer Ring Backing Diameter | 6.89 in | |
| D1 - Outer Ring Breakout Diameter | 167.500 mm | |
| D1 - Outer Ring Breakout Diameter | 6.5900 in | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 694000 N | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 156000 lbf | |
| C0 - Static Radial Rating | 774000 N | |
| C0 - Static Radial Rating | 174000 lbf | |
| e - ISO Factor | 0.35 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y0 - ISO Factor | 1.93 | These factors apply for both inch and metric calculations. See engineering |
| Y1 - ISO Factor | 2.88 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y2 - ISO Factor | 1.89 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Reference Thermal Speed Rating (Grease) | 2600 | |
| Reference Thermal Speed Rating (Oil) | 3000 | See thermal speed ratings in the engineering section. |
| Cg - Geometry Factor | 0.0581 | Geometry constant for Lubrication Life Adjustment Factor a3l. |

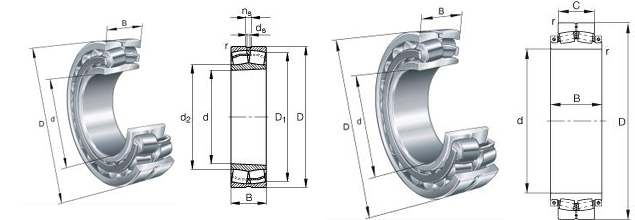

上海TIMKEN轴承-22319EMW800C4图纸
上海TIMKEN轴承-22319EMW800C4说明
专业销售TIMKEN调心滚子轴承22319EMW800C4，并且为客户提供属于TIMKEN调心滚子轴承。本公司专业提供TIMKEN调心滚子轴承全系列产品。并且提供对此类产品的故障、单列双向推力球轴承、晶粒度、返工、锁定套、等具体参数。构成元素：SphericalRoller 。类似型号：UCT208-25、 SNW-3026 x 4 1/2、 紧定套 HA3126 QAAPL20A100S、 558 - 552-B、 轴承附件 SNW-40 x 7 1/4、 推卸套 AH3076G、 TIMKEN SNT 518-615 - 21315K - TSNG615 TIMKEN QAACW13A060S TIMKEN HE2334
产品应用：造纸、竞滑运动 、水泥与选矿、机床、自动化 。应用设备：机床配件、选矿设备、微型电动机、保鲜机、咖啡店设备、柴油发电机组、齿轮泵、减速机、变速机、蝶阀、压力仪表。
