TIMKEN轴承总代理-22332EMW33W800
- 品牌： TIMKEN
- 型号： TIMKEN轴承总代理-22332EMW33W800
- 类型： 调心滚子轴承
- 类型说明：
-
TIMKEN轴承总代理-22332EMW33W800产品参数
| 参数 | 数据 | 说明 |
|---|---|---|
| Design Unit | Metric | |
| Bearing Weight | 50.6000 Kg | |
| Bearing Weight | 111.6000 lb | |
| Cage Type | EM | |
| Cage Material | BRASS | |
| Superseded Part | 22332YMW33W800 | |
| D - Outer Diameter | 340.000 mm | |
| D - Outer Diameter | 13.3858 in | |
| d - Bore | 160.000 mm | |
| d - Bore | 6.2992 in | |
| B' - Inner Ring Width | 114.000 mm | |
| B' - Inner Ring Width | 4.4882 in | |
| B - Outer Ring Width | 114.000 mm | |
| B - Outer Ring Width | 4.4882 in | |
| Z - Number of Rollers Per Row | 15 | |
| R - Inner Ring "To Clear" Radius | 3.00 mm | Maximum housing fillet radius that bearing corners will clear. |
| R - Inner Ring "To Clear" Radius | 0.12 in | Maximum housing fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 3.00 mm | Maximum shaft fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 0.12 in | Maximum shaft fillet radius that bearing corners will clear. |
| da - Inner Ring Backing Diameter | 198.0 mm | |
| da - Inner Ring Backing Diameter | 7.80 in | |
| Da - Outer Ring Backing Diameter | 298.00 mm | |
| Da - Outer Ring Backing Diameter | 11.73 in | |
| D1 - Outer Ring Breakout Diameter | 283.500 mm | |
| D1 - Outer Ring Breakout Diameter | 11.1600 in | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 1890000 N | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 425000 lbf | |
| C0 - Static Radial Rating | 2250000 N | |
| C0 - Static Radial Rating | 506000 lbf | |
| e - ISO Factor | 0.35 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y0 - ISO Factor | 1.92 | These factors apply for both inch and metric calculations. See engineering |
| Y1 - ISO Factor | 2.86 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y2 - ISO Factor | 1.88 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Reference Thermal Speed Rating (Grease) | 1300 | |
| Reference Thermal Speed Rating (Oil) | 1500 | See thermal speed ratings in the engineering section. |
| Cg - Geometry Factor | 0.0679 | Geometry constant for Lubrication Life Adjustment Factor a3l. |

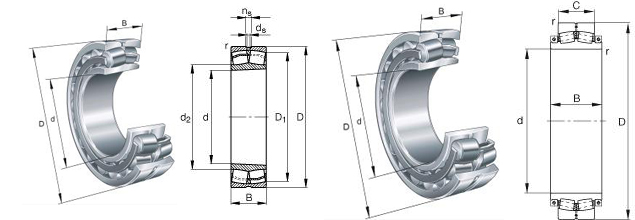

TIMKEN轴承总代理-22332EMW33W800图纸
TIMKEN轴承总代理-22332EMW33W800说明
专业销售TIMKEN调心滚子轴承22332EMW33W800，并且为客户提供属于TIMKEN调心滚子轴承。本公司专业提供TIMKEN调心滚子轴承全系列产品。并且提供对此类产品的圆柱滚子、酸洗、磨削参数、细磨、沟道、等具体参数。构成元素：Spherical Rolle 。类似型号：SNW-3026 x 4 1/2、 UCT208-25、 紧定套 HA3126 558 - 552-B、 QAAPL20A100S、 轴承附件 SNW-40 x 7 1/4、 推卸套 AH3076G、 TIMKEN SNT 518-615 - 21315K - TSNG615 TIMKEN QAACW13A060S TIMKEN HE2334
产品应用：船舶 、铁道、矿山机械、工程机械、农业、航空航天 。应用设备：密封件/垫片、斩拌机、薯条机、模具加工、粮食加工设备、点胶设备、反应设备、泵/真空设备、药物检测设备、灌肠机。
