TAPH26K408S TIMKEN 轴承附件
- 品牌： TIMKEN
- 型号： TAPH26K408S TIMKEN 轴承附件
- 类型： 轴承附件
- 类型说明：
-
TAPH26K408S TIMKEN 轴承附件产品参数
| 参数 | 数据 | 说明 |
|---|---|---|
| Engineering Group | Mounted Bearing | |
| Bearing Number | 22226 | |
| Shaft Size | 4-1/2 in | |
| Shaft Size Type | Imperial | |
| Weight | 136 lb | |
| Weight | 61.7 Kg | |
| Locking Style | Tapered Adapter | |
| Full Timken Part Number | TAPH26K408S TAPH26K408SB TAPH26K408SC TAPH26K408SEB TAPH26K408SEC TAPH26K408SEM TAPH26K408SEN TAPH26K408SEO TAPH26K408SET TAPH26K408SM TAPH26K408SN TAPH26K408SO TAPH26K408ST | |
| Housing Style | Four-Bolt Pillow | |
| Dimension A | 6.0000 in | |
| Dimension A | 152.4 mm | |
| Dimension B | 11.18 in | |
| Dimension B | 284.0 mm | |
| Dimension C | 6.50 in | |
| Dimension C | 165.1 mm | |
| Dimension D Max | 15.75 in | |
| Dimension D Max | 400.1 mm | |
| Dimension D Min | 14.25 in | |
| Dimension D Min | 362.0 mm | |
| Dimension E | 3.25 in | |
| Dimension E | 82.6 mm | |
| Dimension F | 17.50 in | |
| Dimension F | 444.5 mm | |
| Dimension G | 5.04 in | |
| Dimension G | 128.0 mm | |
| Dimension H | 2.04 in | |
| Dimension H | 51.8 mm | |
| Dimension J (Bolt Size) | 0.875 in | |
| Dimension J (Bolt Size) | 24 mm | |
| Dimension L | 5.35 in | |
| Dimension L | 135.9 mm | |
| Dimension M | 2.83 in | |
| Dimension M | 71.9 mm | |
| Dimension S | 4.76 in | |
| Dimension S | 120.9 mm | |
| C - Dynamic Load (Basic) | 170000 lb | |
| C - Dynamic Load (Basic) | 757 kN | |
| C0 - Static Load | 212000 lb | |
| C0 - Static Load | 945 kN | |
| e - Geometry Factor | 0.26 | |
| Y1 - Geometry Factor | 2.62 | |
| Y2 - Geometry Factor | 3.90 | |
| Oil Lubrication - M/N Seal | 700 rpm | |
| Oil Lubrication - T Seal | 1500 rpm | |
| Oil Lubrication - B/C/O Seal | 400 rpm | |
| Grease Lubrication - M/N Seal | 700 rpm | |
| Grease Lubrication - T Seal | 1000 rpm | |
| Grease Lubrication - B/C/O Seal | 400 rpm | |
| Float | 0.083 in | |
| Float | 2.108 mm | |
| Shaft Tolerance | 0.0040 in | |
| Shaft Tolerance | 0.102 mm | |
| Pre Install Clearance Min | 0.0063 in | |
| Pre Install Clearance Min | 0.160 mm | |
| Pre Install Clearance Max | 0.0079 in | |
| Pre Install Clearance Max | 0.201 mm | |
| Int Radial Clearance Reduction Min | 0.0025 in | |
| Int Radial Clearance Reduction Min | 0.064 mm | |
| Int Radial Clearance Reduction Max | 0.0035 in | |
| Int Radial Clearance Reduction Max | 0.089 mm | |
| Adapter Sleeve Axial Movement Min | 0.035 in | |
| Adapter Sleeve Axial Movement Min | 0.889 mm | |
| Adapter Sleeve Axial Movement Max | 0.050 in | |
| Adapter Sleeve Axial Movement Max | 1.270 mm | |
| Post Install Int Radial Clearance Min | 0.0030 in | |
| Post Install Int Radial Clearance Min | 0.076 mm |

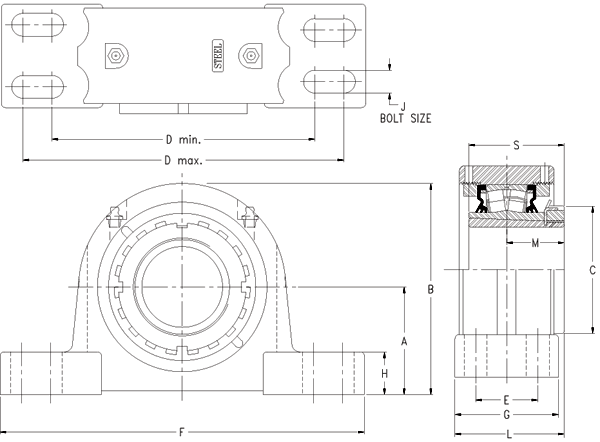

TAPH26K408S TIMKEN 轴承附件图纸
TAPH26K408S TIMKEN 轴承附件说明
专业销售TIMKEN轴承附件TAPH26K408S，并且为客户提供属于TIMKEN轴承附件。本公司专业提供TIMKEN轴承附件全系列产品。并且提供对此类产品的快进给、支承体、滚动体和保持架组件、剖分轴承、圆锥轴承外圈、等具体参数。构成元素：BSpherical Roller TAPH26K408S 。类似型号：UCT208-25、 SNW-3026 x 4 1/2、 紧定套 HA3126 558 - 552-B、QAAPL20A100S、 轴承附件 SNW-40 x 7 1/4、 推卸套 AH3076G、 TIMKEN SNT 518-615 - 21315K - TSNG615 TIMKEN QAACW13A060S TIMKEN HE2334
产品应用：半导体、自动化 、办公设备、轮滑 、消费品。应用设备：机械设计加工、其它辅助设备、裁断机、泵/真空设备、薯片机、其他商业专用设备、干燥蒸发设备、备品备件、小本创业设备、烤鸭炉。
产品应用：半导体、自动化 、办公设备、轮滑 、消费品。应用设备：机械设计加工、其它辅助设备、裁断机、泵/真空设备、薯片机、其他商业专用设备、干燥蒸发设备、备品备件、小本创业设备、烤鸭炉。
