QMTU15J211S TIMKEN 轴承附件
- 品牌： TIMKEN
- 型号： QMTU15J211S TIMKEN 轴承附件
- 类型： 轴承附件
- 类型说明：
-
QMTU15J211S TIMKEN 轴承附件产品参数
| 参数 | 数据 | 说明 |
|---|---|---|
| Engineering Group | Mounted Bearing | |
| Bearing Number | 22215 | |
| Shaft Size | 2-11/16 in | |
| Shaft Size Type | Imperial | |
| Weight | 35 lb | |
| Weight | 15.9 Kg | |
| Locking Style | Eccentric | |
| Full Timken Part Number | QMTU15J211S QMTU15J211SB QMTU15J211SC QMTU15J211SEB QMTU15J211SEC QMTU15J211SEM QMTU15J211SEN QMTU15J211SEO QMTU15J211SET QMTU15J211SM QMTU15J211SN QMTU15J211SO QMTU15J211ST | |
| Housing Style | Take-Up Block | |
| Dimension A | 3.00 in | |
| Dimension A | 76.2 mm | |
| Dimension C | 1.00 in | |
| Dimension C | 25.4 mm | |
| Dimension D | 6.75 in | |
| Dimension D | 171.5 mm | |
| Dimension E | 5.94 in | |
| Dimension E | 150.9 mm | |
| Dimension F | 1.56 in | |
| Dimension F | 39.6 mm | |
| Dimension G | 1.56 in | |
| Dimension G | 39.6 mm | |
| Dimension J | 4.25 in | |
| Dimension J | 108.0 mm | |
| Dimension L | 8.65 in | |
| Dimension L | 219.7 mm | |
| Dimension K | 1.25 in | |
| Dimension K | 31.8 mm | |
| Dimension M | 2.37 in | |
| Dimension M | 60.2 mm | |
| Dimension N | 3.82 in | |
| Dimension N | 97.0 mm | |
| Dimension P | 4.75 in | |
| Dimension P | 120.7 mm | |
| Dimension S | 1.81 in | |
| Dimension S | 46.0 mm | |
| C - Dynamic Load (Basic) | 49900 lb | |
| C - Dynamic Load (Basic) | 220 kN | |
| C0 - Static Load | 54100 lb | |
| C0 - Static Load | 240 kN | |
| e - Geometry Factor | 0.22 | |
| Y1 - Geometry Factor | 3.14 | |
| Y2 - Geometry Factor | 4.67 | |
| Oil Lubrication - M/N Seal | 1600 rpm | |
| Oil Lubrication - T Seal | 2900 rpm | |
| Oil Lubrication - B/C/O Seal | 1300 rpm | |
| Grease Lubrication - M/N Seal | 1600 rpm | |
| Grease Lubrication - T Seal | 2400 rpm | |
| Grease Lubrication - B/C/O Seal | 1300 rpm | |
| Float | 0.08 in | |
| Float | 2.11 mm | |
| Shaft Tolerance | 0.0020 in | |
| Shaft Tolerance | 0.051 mm | |
| Eng Internal Radial Clearance - Min | 0.0020 | |
| Eng Internal Radial Clearance - Max | 0.0031 | |
| Pre Install Clearance Min | 0.050 mm | |
| Pre Install Clearance Min | 0.0020 in | |
| Pre Install Clearance Max | 0.080 mm | |
| Pre Install Clearance Max | 0.0031 in |

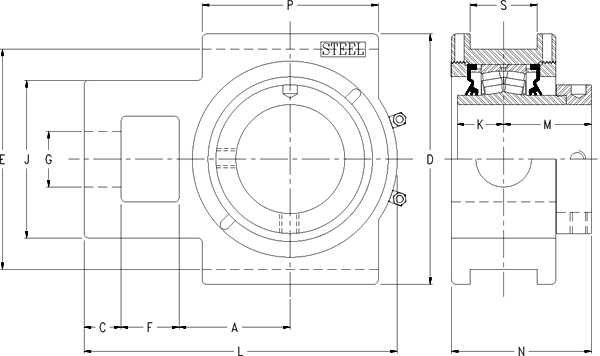

QMTU15J211S TIMKEN 轴承附件图纸
QMTU15J211S TIMKEN 轴承附件说明
专业销售TIMKEN轴承附件QMTU15J211S，并且为客户提供属于TIMKEN轴承附件。本公司专业提供TIMKEN轴承附件全系列产品。并且提供对此类产品的滤波、粗磨、中值寿命、剖分轴承、滚针、等具体参数。构成元素：B Spherical RollerQMTU15J211S 。类似型号：SNW-3026 x 4 1/2、 UCT208-25、 紧定套 HA3126 QAAPL20A100S、 558 - 552-B、 轴承附件 SNW-40 x 7 1/4、 推卸套 AH3076G、 TIMKEN HE2334 TIMKEN QAACW13A060S TIMKEN SNT 518-615 - 21315K - TSNG615
产品应用：造纸、钢铁 、消费品、太阳能 、自动化 。应用设备：结帮机、油水分离设备、过滤器、分离机、商超货架、加料再生破碎机、挖掘机械、塑料吹塑机、移印机、电炸炉。
产品应用：造纸、钢铁 、消费品、太阳能 、自动化 。应用设备：结帮机、油水分离设备、过滤器、分离机、商超货架、加料再生破碎机、挖掘机械、塑料吹塑机、移印机、电炸炉。
