22310EMW800C4 美国TIMKEN调心滚子轴承
- 品牌： TIMKEN
- 型号： 22310EMW800C4 美国TIMKEN调心滚子轴承
- 类型： 调心滚子轴承
- 类型说明：
-
22310EMW800C4 美国TIMKEN调心滚子轴承产品参数
| 参数 | 数据 | 说明 |
|---|---|---|
| Design Unit | Metric | |
| Bearing Weight | 1.8900 Kg | |
| Bearing Weight | 4.1667 lb | |
| Cage Type | EM | |
| UPC Code | 087796026216 | |
| Cage Material | BRASS | |
| D - Outer Diameter | 109.997 mm | |
| D - Outer Diameter | 4.3306 in | |
| d - Bore | 50.000 mm | |
| d - Bore | 1.9685 in | |
| B' - Inner Ring Width | 40.000 mm | |
| B' - Inner Ring Width | 1.5748 in | |
| B - Outer Ring Width | 40.000 mm | |
| B - Outer Ring Width | 1.5748 in | |
| Z - Number of Rollers Per Row | 15 | |
| R - Inner Ring "To Clear" Radius | 2.01 mm | Maximum housing fillet radius that bearing corners will clear. |
| R - Inner Ring "To Clear" Radius | 0.08 in | Maximum housing fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 2.00 mm | Maximum shaft fillet radius that bearing corners will clear. |
| r - Outer Ring "To Clear" Radius | 0.08 in | Maximum shaft fillet radius that bearing corners will clear. |
| da - Inner Ring Backing Diameter | 65.2 mm | |
| da - Inner Ring Backing Diameter | 2.57 in | |
| Da - Outer Ring Backing Diameter | 98.5 mm | |
| Da - Outer Ring Backing Diameter | 3.88 in | |
| D1 - Outer Ring Breakout Diameter | 93.259 mm | |
| D1 - Outer Ring Breakout Diameter | 3.6716 in | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 238000 N | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 54000 lbf | |
| C0 - Static Radial Rating | 241000 N | |
| C0 - Static Radial Rating | 54000 lbf | |
| e - ISO Factor | 0.36 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y0 - ISO Factor | 1.85 | These factors apply for both inch and metric calculations. See engineering |
| Y1 - ISO Factor | 1.89 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Y2 - ISO Factor | 2.81 | These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| Reference Thermal Speed Rating (Grease) | 4600 | |
| Reference Thermal Speed Rating (Oil) | 5500 | See thermal speed ratings in the engineering section. |
| Cg - Geometry Factor | 0.0549 | Geometry constant for Lubrication Life Adjustment Factor a3l. |

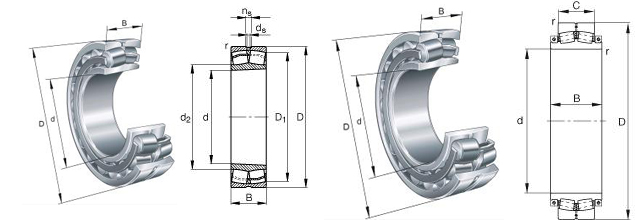

22310EMW800C4 美国TIMKEN调心滚子轴承图纸
22310EMW800C4 美国TIMKEN调心滚子轴承说明
专业销售TIMKEN调心滚子轴承22310EMW800C4，并且为客户提供属于TIMKEN调心滚子轴承。本公司专业提供TIMKEN调心滚子轴承全系列产品。并且提供对此类产品的外圈(座圈)轴心线、大型箱式炉单元、砂轮、轴承实际高度偏差、固定的内圈(轴圈)负荷、等具体参数。构成元素：Spherical Roller 。类似型号：SNW-3026 x 4 1/2、 UCT208-25、 紧定套 HA3126 558 - 552-B、 QAAPL20A100S、 轴承附件 SNW-40 x 7 1/4、 推卸套 AH3076G、 TIMKEN SNT 518-615 - 21315K - TSNG615 TIMKEN HE2334 TIMKEN QAACW13A060S
产品应用：航空航天、医疗保健、Two and three wheelers 、钢铁 、压缩机 。应用设备：涂镀层测厚仪、封口机械、铲车、切断机、激光加工、减速机、变速机、干燥设备、金属成型设备、电磁阀、电子元件成型机。
